If you’re searching for the best automotive oscilloscope diagnostic kits for 2026, I can help. I’ve reviewed top models like the Hantek 1008C, PicoScope 2204A, and Autel MaxiSys accessories, which offer multiple channels, high resolution, and compatibility with vehicle protocols like CAN and LIN. These kits are portable, user-friendly, and packed with features to make diagnostics faster and more accurate. Keep exploring, and you’ll find options that suit all your automotive testing needs.
Key Takeaways
- Features advanced multi-channel capabilities, high sampling rates, and extensive measurement functions for precise automotive diagnostics.
- Compatible with multiple platforms (Windows, Linux, Mac) and vehicle protocols like CAN bus, LIN, and FlexRay.
- Portable, lightweight designs with durable cases and long battery life facilitate on-the-go vehicle troubleshooting.
- Include essential accessories such as probes, test leads, and signal generators for comprehensive testing.
- Offer integrated diagnostic tools like spectrum analyzers, serial decoders, and multimeters in a single device.
| Hantek 1008C USB 8CH Automotive Oscilloscope |  | Best Automotive Diagnostics | Channels: 8 channels | Bandwidth: Not specified (up to 8 channels, general info) | Sampling Rate: 2.4 MSa/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Autel MaxiSys Oscilloscope Accessory Kit |  | Versatile Automotive Tool | Channels: Not specified (accessory kit) | Bandwidth: Not applicable | Sampling Rate: Not applicable | VIEW LATEST PRICE | See Our Full Breakdown |
| PicoScope 2204A Oscilloscope 2-Channel Portable Lab Kit |  | Portable Lab Solution | Channels: 2 channels | Bandwidth: 10 MHz | Sampling Rate: 100 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| PicoScope 2204A-D2 Portable USB Oscilloscope |  | Compact Precision | Channels: 2 channels | Bandwidth: 10 MHz | Sampling Rate: 100 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 4-in-1 Automotive Diagnostic USB Oscilloscope |  | Easy-to-Use Testing | Channels: 4 channels | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Oscilloscope Test Leads Kit with BNC Connectors |  | Automotive Probe Kit | Channels: Not applicable (probes kit) | Bandwidth: Not applicable | Sampling Rate: Not applicable | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 4CH Automotive Oscilloscope Kit DSO3064 |  | High-Performance Scope | Channels: 4 channels | Bandwidth: 60 MHz | Sampling Rate: 200 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek 1008C+HT201+HT30A+HT307 Automotive Oscilloscope |  | Multi-Function Scope | Channels: 8 channels | Bandwidth: Not specified | Sampling Rate: Not specified | VIEW LATEST PRICE | See Our Full Breakdown |
| Hantek HT307 Back Probe Pin Set for Oscilloscopes |  | Precision Electrical Testing | Channels: Not applicable (probes set) | Bandwidth: Not applicable | Sampling Rate: Not applicable | VIEW LATEST PRICE | See Our Full Breakdown |
| FNIRSI 2C53T Handheld Oscilloscope 50MHz Multimeter |  | Handheld Versatility | Channels: 2 channels | Bandwidth: 50 MHz | Sampling Rate: 250 MS/s | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
Autel MaxiSys MSOAK Oscilloscope Accessory Kit, Work w/ Autel Scanner Ultra S2/ Ultra/ MS919 S2/ MS919/ MP408, 65A/ 650A AC/DC Current Clamp, Coil On Plug Probe, HT Extension Lead, 2*2pcs Battery Clip
👍【Compatibility】Autel MaxiSys MSOAK oscilloscope accessory kit is compatible with the MaxiFlash VCMI such as the MaxiSysUltra, MS919, and...
As an affiliate, we earn on qualifying purchases.
Hantek 1008C USB 8CH Automotive Oscilloscope
If you’re a professional technician or a serious hobbyist, the Hantek 1008C USB 8CH Automotive Oscilloscope is an excellent choice because it combines extensive diagnostic functions with high-resolution signal measurement. It seamlessly integrates automotive diagnostics, including ignition, sensor, bus detection, and actuator testing, with general oscilloscope features. With 8 channels, 12-bit resolution, and a 2.4MSa/s sampling rate, it captures precise signals quickly. The device connects via USB 2.0 to Windows, allowing easy data transfer and analysis. Its programmable signal generator and user-friendly design make it versatile for troubleshooting, testing, and development, whether in a professional workshop or a personal garage.
- Channels:8 channels
- Bandwidth:Not specified (up to 8 channels, general info)
- Sampling Rate:2.4 MSa/s
- Data Storage / Memory:4K memory depth
- Connectivity:USB 2.0
- Additional Testing Features:Programmable signal generator, auto measurement
- Additional Feature:Programmable signal generator
- Additional Feature:12-bit analog resolution
- Additional Feature:Easy one-key operation
-
Pico Technology PicoScope 2204A Oscilloscope 2 Channels 10 MHz Bandwidth, 100 MS/s Sampling Rate, Handheld USB PC Digital Portable Lab Kit, with Probes, PS7 Software and Waveform Generator
Use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and decode...
As an affiliate, we earn on qualifying purchases.
Autel MaxiSys Oscilloscope Accessory Kit
The Autel MaxiSys Oscilloscope Accessory Kit is an excellent choice for professional automotive technicians who need precise and versatile diagnostic tools. It’s compatible with MaxiFlash VCMI, MaxiSys Ultra, MS919, and MP408, and includes essential accessories like 65A and 650A AC/DC current clamps, a Coil On Plug Probe, extension leads, battery clips, and a durable blow-molded case. The coil probe captures ignition waveforms with high accuracy, while the current clamps measure current contactlessly across a wide frequency range. Weighing just under 12 pounds, it’s portable and supported by a one-year warranty, 24/7 technical support, and a 30-day full refund policy.
- Channels:Not specified (accessory kit)
- Bandwidth:Not applicable
- Sampling Rate:Not applicable
- Data Storage / Memory:Not applicable
- Connectivity:Not applicable (accessory kit)
- Additional Testing Features:Current clamps, coil probe
- Additional Feature:Includes current clamps
- Additional Feature:High-accuracy anti-interference
- Additional Feature:Blow-molded carrying case
-
Pico Technology PicoScope 2204A-D2 Digital Oscilloscope 2 Channels 10 MHz, 8 kS, 2000wfms/s, Handheld Portable USB PC Lab Scope Waveform Generator, PS7 Software
Use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and decode...
As an affiliate, we earn on qualifying purchases.

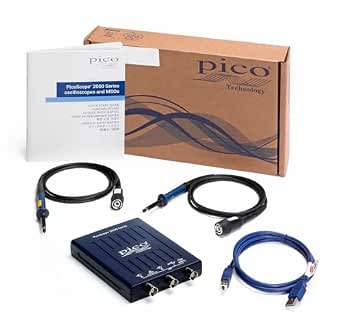

PicoScope 2204A Oscilloscope 2-Channel Portable Lab Kit
The PicoScope 2204A Oscilloscope 2-Channel Portable Lab Kit stands out as an ideal choice for automotive technicians and hobbyists who need accurate, on-the-go signal analysis. Its advanced features include a 10 MHz bandwidth, 100 MS/s sampling rate, and 8 kS memory, enabling detailed signal capture and analysis. The kit supports serial protocol decoding, math functions, filtering, and digital triggering, making it versatile for both simple and complex diagnostics. Its compact, USB-powered design fits easily into a laptop bag, while the included software offers thorough waveform analysis. Continuous updates and lifetime support ensure it remains a reliable, powerful tool for automotive troubleshooting.
- Channels:2 channels
- Bandwidth:10 MHz
- Sampling Rate:100 MS/s
- Data Storage / Memory:8 kS (8,000 samples)
- Connectivity:USB 2.0
- Additional Testing Features:Spectrum analyzer, function generator, serial decoding
- Additional Feature:Spectrum analyzer capabilities
- Additional Feature:Advanced math and filtering
- Additional Feature:Compatibility with Linux and Mac
PicoScope 2204A-D2 Portable USB Oscilloscope
For automotive technicians and hobbyists seeking a portable yet powerful diagnostic tool, the PicoScope 2204A-D2 Portable USB Oscilloscope stands out with its versatile features and compact design. It functions not only as an oscilloscope but also as a spectrum analyzer, function generator, and serial protocol decoder. With 2 channels, a 10 MHz bandwidth, and up to 100 MS/s sampling rate, it delivers detailed signals and analysis. Its lightweight, USB-powered design makes it easy to carry and use anywhere. supported by extensive software compatible across multiple platforms, it’s a reliable choice for on-the-go diagnostics and detailed testing.
- Channels:2 channels
- Bandwidth:10 MHz
- Sampling Rate:100 MS/s
- Data Storage / Memory:8 kS
- Connectivity:USB 2.0
- Additional Testing Features:Spectrum analyzer, function generator, serial decoding
- Additional Feature:Ultra-compact, travel-friendly
- Additional Feature:Continuous free software updates
- Additional Feature:Digital triggering features
Hantek 4-in-1 Automotive Diagnostic USB Oscilloscope
If you’re looking for a versatile tool that combines multiple diagnostic functions into a compact, portable device, the Hantek 4-in-1 Automotive Diagnostic USB Oscilloscope is an excellent choice. It merges automotive diagnostics, an oscilloscope, signal source, and digital multimeter into one lightweight unit, making it perfect for on-the-go use. Its ergonomic design features a high-definition color LCD and a minimalist keyboard, ensuring easy operation. Powered via Type-C, it offers long-lasting battery life, with a full charge lasting up to two months in standby. This high-quality, user-friendly device provides all-encompassing testing capabilities, supported by excellent customer service.
- Channels:4 channels
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Data Storage / Memory:Not specified
- Connectivity:Not applicable
- Additional Testing Features:Signal generator, multimeter
- Additional Feature:Signal source and multimeter combo
- Additional Feature:Multi-angle adjustable stand
- Additional Feature:Ultra-low power consumption
Oscilloscope Test Leads Kit with BNC Connectors
An oscilloscope test leads kit with BNC connectors stands out as an essential tool for auto electricians who need precise, reliable measurements in tight or complex automotive environments. This kit includes a 20:1 attenuator, back probe pins, and a heavy-duty BNC to banana cable, making it versatile for various testing scenarios. Its micro needle-tip probes pierce insulation or weather pack seals without damaging wires, perfect for sensor, ECU, and circuit diagnostics. Compatible with most digital oscilloscopes and multimeters, it guarantees safe, accurate testing of high-voltage signals, connectors, and wiring, critical for diagnosing modern automotive electrical systems efficiently.
- Channels:Not applicable (probes kit)
- Bandwidth:Not applicable
- Sampling Rate:Not applicable
- Data Storage / Memory:Not applicable
- Connectivity:BNC/banana cables
- Additional Testing Features:Probes and adapters for wiring
- Additional Feature:Micro needle piercing tips
- Additional Feature:High-voltage handling (20V–20V)
- Additional Feature:Durable heavy-duty cables

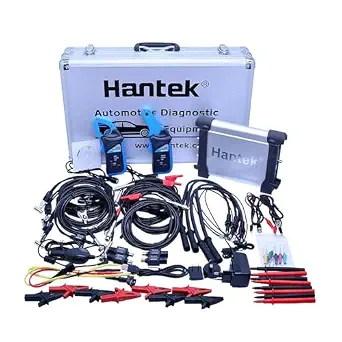

Hantek 4CH Automotive Oscilloscope Kit DSO3064
The Hantek 4CH Automotive Oscilloscope Kit DSO3064 stands out as an ideal choice for professional automotive technicians and engineers who need precise, all-encompassing diagnostics. With a 60MHz bandwidth, 200MS/s sampling rate, and extensive memory depth, it delivers detailed waveform analysis. Its features include frequency counting, FFT spectrum analysis, and over 20 automatic measurement functions with PASS/FAIL checks, streamlining troubleshooting. Supporting voltages from 8–36V and equipped with USB 2.0 and optional LAN connectivity, it’s versatile for vehicle diagnostics. Its industrial design ensures ease of use, making it a powerful tool for analyzing engine performance, sensors, and electrical systems efficiently.
- Channels:4 channels
- Bandwidth:60 MHz
- Sampling Rate:200 MS/s
- Data Storage / Memory:10k–16M (per channel)
- Connectivity:USB 2.0
- Additional Testing Features:FFT spectrum, auto measurement, pass/fail
- Additional Feature:Wide input voltage range
- Additional Feature:FFT spectrum analysis
- Additional Feature:PASS/FAIL automatic checks
Hantek 1008C+HT201+HT30A+HT307 Automotive Oscilloscope
Designed for automotive professionals and enthusiasts alike, the Hantek 1008C+HT201+HT30A+HT307 Oscilloscope offers an all-inclusive diagnostic solution with its 8-channel design and advanced features. It supports signal transfer via USB 2.0 and is compatible exclusively with Windows. With over 80 automotive diagnostic functions, it easily handles ignition testing, sensor analysis, and bus detection. Its 12-bit resolution, 4K memory depth, and 2.4MSa/s sampling rate guarantee precise signal analysis. The built-in programmable signal generator simulates crankshaft and camshaft signals, while intuitive controls and USB data transfer make diagnostics straightforward and efficient for both technicians and hobbyists.
- Channels:8 channels
- Bandwidth:Not specified
- Sampling Rate:Not specified
- Data Storage / Memory:Not specified
- Connectivity:USB 2.0
- Additional Testing Features:Programmable signal generator, automotive functions
- Additional Feature:Built-in programmable signal generator
- Additional Feature:80+ automotive diagnostic functions
- Additional Feature:12-bit resolution channels
Hantek HT307 Back Probe Pin Set for Oscilloscopes
If you’re working with delicate automotive electrical systems, the Hantek HT307 Back Probe Pin Set is an essential tool. It includes five colorful back probe pins designed specifically for oscilloscope diagnostics. The sharp tips pierce connector seals or wire insulation easily, allowing measurements without damaging wires. They’re perfect for probing small gauge wires and tiny circuit boards. The probes also feature repairable tips, so you can replace needles and screws as needed, extending their lifespan. Plus, the set provides all the necessary accessories for precise electrical testing and connector probing, making it a versatile addition to any automotive diagnostic toolkit.
- Channels:Not applicable (probes set)
- Bandwidth:Not applicable
- Sampling Rate:Not applicable
- Data Storage / Memory:Not applicable
- Connectivity:Probe set, no direct connectivity
- Additional Testing Features:Probe pins for wiring
- Additional Feature:Repairable, replaceable tips
- Additional Feature:Piercing connector seals
- Additional Feature:Multiple color-coded probes
FNIRSI 2C53T Handheld Oscilloscope 50MHz Multimeter
For automotive technicians seeking an all-in-one diagnostic tool, the FNIRSI 2C53T Handheld Oscilloscope stands out with its 50 MHz bandwidth and integrated multimeter. It offers a 250 MS/s sampling rate, waveform storage, and features like math operations, cursor measurement, and XY mode for enhanced accuracy. The multimeter measures AC/DC voltage, current, resistance, and capacitance with precision, while the built-in DDS signal generator creates waveforms up to 50 kHz. Its portable design includes a color LCD, high-voltage protection, and a long-lasting battery, making it ideal for on-the-go diagnostics. This device combines versatility, power, and ease of use for automotive professionals.
- Channels:2 channels
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Data Storage / Memory:1 Kpt (1,000 points)
- Connectivity:Type-C, USB 2.0
- Additional Testing Features:Signal generator, math functions, cursors
- Additional Feature:Integrated multimeter functions
- Additional Feature:Built-in DDS signal generator
- Additional Feature:Long battery life (up to 6 hours)
Factors to Consider When Choosing an Oscilloscope Automotive Diagnostic Kit
When selecting an oscilloscope automotive diagnostic kit, I focus on key factors that guarantee it fits my needs. Things like compatibility with different vehicle models, the number of channels, and measurement accuracy matter a lot. I’ll also consider software compatibility and diagnostic functions to get the most out of my tool.
Compatibility With Vehicles
Choosing the right automotive oscilloscope kit hinges on ensuring compatibility with your specific vehicle make and model. I always check if the tool is designed for my car’s brand, as some are limited to certain manufacturers or systems. It’s essential to verify that the kit supports common electrical standards, like 12V or 24V systems, to avoid mismatches. I also look for adapters or probes included in the package, ensuring they can connect to various sensors and connectors in my vehicle. Additionally, I confirm that the device’s software or firmware supports protocols like CAN bus, LIN, or FlexRay used in my cars. Lastly, compatibility with my operating system—whether Windows, Linux, or Mac—is vital for smooth data analysis and software updates.
Number Of Channels
The number of channels in an automotive oscilloscope kit directly impacts its diagnostic capabilities. Higher channel counts, like 8 or more, let me measure multiple signals simultaneously, which speeds up troubleshooting. For basic testing, two channels usually suffice, but for complex systems with many sensors, four or more channels are essential. More channels enable me to analyze multi-wire circuits and compare signals side-by-side in real-time, providing a clearer picture of electrical interactions. Multi-channel oscilloscopes allow me to capture and correlate data from various points in the vehicle’s electrical system, making diagnostics more all-encompassing. Ultimately, choosing the right number of channels depends on the complexity of the vehicle’s electronics and the diagnostic tasks I need to perform efficiently.
Measurement Accuracy
Measurement accuracy in an automotive oscilloscope kit hinges on several critical factors. First, a higher bit resolution, like 12-bit or more, provides finer voltage detail, improving measurement precision. Second, a greater sampling rate—2.4MSa/s or higher—captures more accurate waveforms and reduces aliasing. Accurate trigger functions are essential for stable, repeatable measurements, preventing errors caused by signal misalignment. The quality of probes also plays a significant role; using high-quality probes with proper attenuation ratios minimizes signal distortion. Ultimately, calibration and auto-measurement features help verify and enhance reading accuracy during diagnostics. Paying attention to these factors ensures you get precise, reliable data, making your troubleshooting more effective and efficient.
Software Compatibility
When selecting an automotive diagnostic oscilloscope kit, confirming software compatibility with your operating system is essential to guarantee smooth operation. I always check if the software works seamlessly with Windows, Linux, or Mac, depending on my setup. It’s also important to verify that the software receives regular updates, adding new diagnostic features, protocol decoding, and improving compatibility. Additionally, I look for software that supports the automotive protocols I need, like CAN bus, ignition signals, or sensor outputs. Compatibility with other tools or platforms I use, such as vehicle management systems or data analysis programs, is a plus. Lastly, user-friendly interfaces, clear data visualization, and export options streamline diagnostics and troubleshooting, making my work more efficient and accurate.
Diagnostic Functions
Choosing an automotive diagnostic oscilloscope kit means prioritizing the range of diagnostic functions it offers. I look for kits with essential features like ignition testing, sensor analysis, bus detection, and actuator testing to cover all electrical system troubleshooting needs. Over 80 automotive-specific diagnostic functions guarantee quick fault detection and system stability assessment. Automatic measurement modes and pass/fail checks streamline workflows, reducing manual setup time and increasing efficiency. I also consider whether the device can simulate engine signals, such as crankshaft and camshaft signals, using programmable signal generators for testing purposes. Finally, integrated, user-friendly interfaces and software are vital for easy data transfer, analysis, and storage, making troubleshooting more straightforward and thorough. These factors guarantee I can diagnose vehicles accurately and efficiently.
Portability And Size
A compact, lightweight oscilloscope makes it much easier to maneuver in tight automotive spaces and carry around for on-the-go diagnostics. Its small size allows for better access to hard-to-reach areas, making troubleshooting more efficient. Portable models often come with built-in batteries, giving me the flexibility to work anywhere without relying on power outlets. The design typically features foldable or detachable parts, reducing overall dimensions without sacrificing performance. This enhances storage convenience, especially for technicians who need to transport their tools frequently. An ergonomic, handheld form also boosts comfort during long diagnostic sessions, helping to reduce fatigue. Overall, size and portability are critical factors that can profoundly impact the ease and efficiency of automotive diagnostics.
Signal Generation Capabilities
Signal generation capabilities are vital features to contemplate because they enable the oscilloscope to simulate and test various automotive signals accurately. High-quality signal generators, often multi-channel and programmable, can produce waveforms up to 250KHz or higher, offering versatile testing options. Many models include built-in generators that mimic crankshaft and camshaft signals, which are essential for diagnosing engine sensors. The effectiveness of these features depends on waveform stability, accuracy, and output voltage levels like LVTTL, ensuring reliable signal reproduction. Advanced oscilloscopes support diverse waveform types, including sine, square, and custom arbitrary signals, providing thorough testing for electronic components. This capability allows me to diagnose sensors, actuators, and communication issues precisely, making it an indispensable factor when selecting a diagnostic kit.
Ease Of Use
Ease of use is essential when selecting an automotive oscilloscope kit because it directly impacts how efficiently I can perform diagnostics. A user-friendly interface with features like one-key measurement modes simplifies operation, making it accessible for both beginners and experienced technicians. Clear, high-resolution displays allow me to interpret signals quickly without needing extensive technical training. Automated functions and preset routines help reduce setup time and minimize errors, streamlining my workflow. The lightweight, ergonomic design, including handheld options and adjustable stands, makes handling comfortable and portable across different workshop settings. Additionally, thorough accessories such as probe kits and intuitive software interfaces ensure straightforward connections and data analysis. Overall, an easy-to-use kit enhances productivity and confidence during diagnostics, saving time and reducing frustration.
Frequently Asked Questions
How Compatible Are These Oscilloscopes With Different Vehicle Makes and Models?
These oscilloscopes are highly compatible with various vehicle makes and models, I’ve found. They typically come with versatile adapters and connectors that fit most OBD-II ports and sensor types. I always double-check the device specifications to guarantee compatibility, especially with older or specialized vehicles. Overall, I’ve had great success using these tools across different brands, making them reliable for detailed diagnostics regardless of the car’s make or model.
What Is the Typical Learning Curve for Beginners Using These Kits?
You might be surprised, but I found that the learning curve for beginners is quite manageable. At first, I struggled a bit, but with hands-on practice and reading the manual, I quickly gained confidence. Most kits come with user-friendly interfaces and tutorials, making the process smoother. If you’re patient and willing to learn, you’ll be diagnosing vehicle issues in no time. It’s a rewarding skill that gets easier with experience.
Do These Kits Include Software Updates or Firmware Upgrades?
Most of these kits do include software updates and firmware upgrades, but it varies by brand. I recommend checking the product details to confirm. Manufacturers often release updates to improve functionality and fix bugs, which you can usually download from their websites. Keeping your kit updated guarantees you get the latest features and peak performance. So, always verify what’s included before purchasing, and plan to keep your device current.
How Portable Are These Diagnostic Oscilloscopes for Field Use?
These diagnostic oscilloscopes are quite portable, making them perfect for field use. I find them lightweight and compact enough to carry easily, whether I’m working in a shop or on the roadside. Many come with sturdy cases or straps, so I can quickly grab and go. Their portability doesn’t compromise performance, so I can reliably diagnose vehicles anywhere without lugging around bulky equipment.
What Safety Features Are Integrated Into These Automotive Oscilloscope Kits?
Did you know that over 80% of automotive technicians prioritize safety features? These diagnostic kits include essential safety measures like insulated probes, overload protection, and auto-shutdown functions to prevent electrical mishaps. I appreciate how these features protect both the user and the vehicle, making diagnostics safer and more reliable. With built-in safeguards, I feel confident working on complex circuits without risking damage or personal injury.
Conclusion
Choosing the right automotive oscilloscope kit is like selecting the perfect tool to unlock a car’s hidden secrets. Picture yourself in a dim garage, the flickering glow of your screen illuminating intricate circuits and tiny sparks of data. With the right kit in hand, diagnosing becomes an art, and every beep and wave paints a clearer picture of your vehicle’s health. Trust your instincts, and let these tools guide you to automotive clarity.
