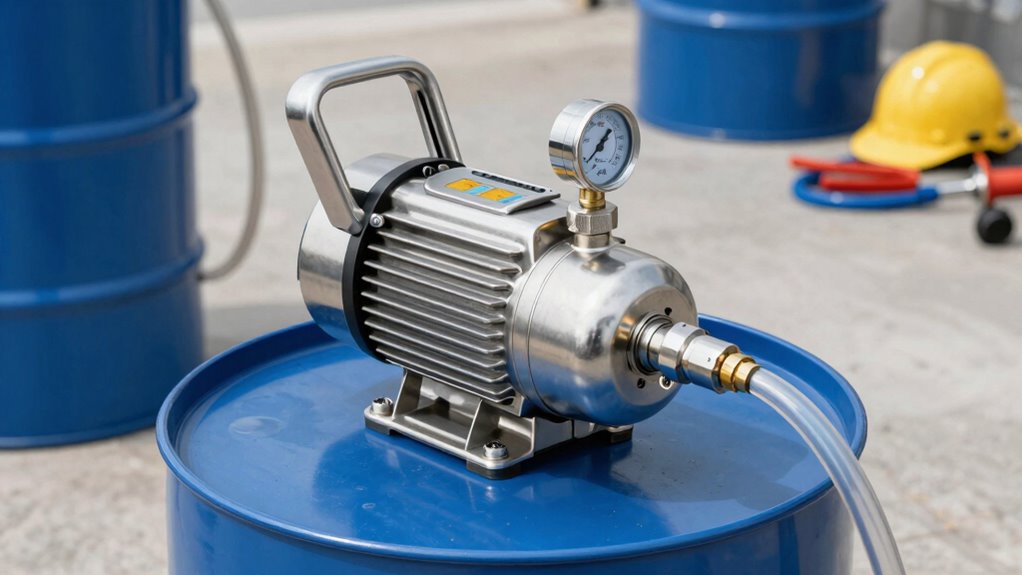

Choosing a waste oil transfer pump for drums comes down to one central tradeoff: how much flow you need versus how much setup and maintenance you’re willing to take on. For most workshops draining 55-gallon drums regularly, the Groz Heavy-Duty 115V Electric Drum Pump (Model 45555) earns the best overall spot thanks to its 8 GPM throughput and tank-mounted convenience. If you only move oil occasionally, the Manual 5-55 Gallon Lever-Action Drum Pump is the better value with no power source required, and shops with compressed air lines will appreciate the speed of the Pneumatic Oil Drum Pump with Air Regulator. Cheap rotary pumps and underpowered electric units fill this category, and picking wrong means either slow, arm-tiring transfers or a motor that burns out on thick, cold waste oil. Keep reading for the full breakdown of all 15 pumps and which one fits your setup.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- Electric gear pumps from Groz (8 GPM and 4 GPM models) dominated the top spots because their self-priming gear design handles thick waste oil far better than the cheaper centrifugal-style 110V pumps in the lineup.
- Manual lever-action pumps (Manual 5-55 Gallon, Zeeline ZED-S1, Lincoln 1335) consistently beat rotary hand-crank pumps for waste oil because lever strokes move more viscous fluid per effort — rotary cranks suit thinner fuels like diesel and kerosene.
- Pneumatic pumps were the clear choice for high-volume shops already running compressed air, with the air-regulated model offering the safest option for flammable environments where electric sparks are a concern.
- The budget 110V 2480W liquid transfer pump and the LYCARESUN adjustable aluminum pump trade durability for price — both work for light, occasional use but showed the weakest fit for hot, contaminated waste oil.
- Self-priming capability and hose length varied widely: pumps bundled with 8 ft hoses and suction tubes sized for 55-gallon drums saved real setup cost, while short-tube models required extra purchases before first use.
| Manual 5-55 Gallon Oil Transfer Pump – Heavy Duty Lever-Action Drum Pump with Telescopic Suction Tube |  | Best Budget Manual Pick | Drum Compatibility: 5-55 gallon (200L) | Flow Rate: 0.25L (9oz) per stroke | Suction Tube: Adjustable 450-900mm (18-35 in) | VIEW ON AMAZON | See Our Full Breakdown |
| Groz Heavy-Duty 115V Electric Drum Pump, 8 GPM, 1/2 HP (Model 45555) |  | Best Overall | Voltage: 115V AC, 60 Hz | Motor: 1/2 HP, 3400 RPM, 9A | Flow Rate: Up to 8 GPM (30 LPM) | VIEW ON AMAZON | See Our Full Breakdown |
| Groz Electric Oil Transfer Pump, 115V AC 1/2 HP Gear Pump, 4 GPM (Model 45550) | | Best Mid-Duty Electric Value | Voltage: 115V AC, 60 Hz | Motor: 1/2 HP, 1600 RPM, 9A | Flow Rate: 4 GPM (15 LPM) | VIEW ON AMAZON | See Our Full Breakdown |
| BLACKHORSE-RACING Self-Priming 110V AC Oil Transfer Pump – 16 GPM |  | Best for High-Volume Fuel Transfer | Voltage: 110V AC, 60 Hz | Power: 550W | Flow Rate: 20-60 L/min (5.25-15.75 GPM) | VIEW ON AMAZON | See Our Full Breakdown |
| Zeeline ZED-S1 Lever Action Drum Pump, Heavy-Duty Steel Oil Transfer Pump |  | Best Premium Manual Pump | Pump Type: Lever action drum pump | Delivery Rate: ~1 gallon per 9 strokes | Drum Sizes: 15 to 55 gallons | VIEW ON AMAZON | See Our Full Breakdown |
| OMT 55 Gallon Drum Pump – Manual Hand Crank Fuel Transfer Pump for 15-55 Gallon Drums |  | Best Manual Pick for Portability | Material: Aluminum alloy with zinc plating | Operation: Manual hand crank | Drum Compatibility: 15 to 55 gallon drums | VIEW ON AMAZON | See Our Full Breakdown |
| Pneumatic Oil Drum Pump with Steel Suction Tube and Air Regulator |  | Best for Air-Equipped Workshops | Operation: Pneumatic, air-operated reciprocating pump | Intended Fluids: Motor oil, gear oil, hydraulic oil | Suction Tube: Steel | VIEW ON AMAZON | See Our Full Breakdown |
| Lincoln 1335 Lever-Action Fluid Transfer Pump |  | Best Fluid Versatility, Manual Class | Drum Capacity: 16 to 55 gallons | Flow per Stroke: 8.5 fl. oz. | Bung Size: 2 inches | VIEW ON AMAZON | See Our Full Breakdown |
| OMT 55 Gallon Drum Pump – Rotary Hand Crank Barrel Pump for 5 to 55 Gallon Drums |  | Best Value Manual Pump | Fits Drum Size: 5 to 55 gallons | Material: Aluminum alloy with zinc plating | Operation: Manual rotary hand crank | VIEW ON AMAZON | See Our Full Breakdown |
| 110V 2480W Electric Liquid Transfer Pump with 91cm Stainless Steel Tube and 2m Hose |  | Best High-Flow Electric Option | Power: 2480W, 110V | Motor Speed: 13,000 RPM | Flow Rate: 80-100 liters per minute | VIEW ON AMAZON | See Our Full Breakdown |
| Pneumatic Oil Transfer Pump, Heavy-Duty Waste Oil Drum Pump with Pressure Gauge, 200L, Single Pump |  | Best for Controlled Workshop Dispensing | Operation: Pneumatic | Pressure ratio: 5:1 | Air pressure: 0.5–0.8 MPa | VIEW ON AMAZON | See Our Full Breakdown |
| LYCARESUN Adjustable Aluminum Drum Pump for Oil and Diesel |  | Best for Adjustable Drum Fit | Compatible drum capacity: 15–55 gallons | Pump height: 51 inches | Tube configuration: Three adjustable tubes | VIEW ON AMAZON | See Our Full Breakdown |
| 55 Gallon Manual Rotary Drum Pump for Diesel, Oil, and Kerosene |  | Best for Metal Drum Waste Oil | Operation mode: Manual hand crank, rotary | Drum compatibility: Steel drums, 5–55 gallons | Bung size: 2-inch NPT | VIEW ON AMAZON | See Our Full Breakdown |
| Brilluxa Rotary Oil Pump, Hand Crank Drum Transfer Pump, Aluminum Alloy, for 55 Gallon Fuel and Lubricant Transfer |  | Best Manual Kit for Occasional Transfers | Power source: Manual hand crank | Material: Aluminum alloy and bamboo | Flow rate: Up to 29 L/min | VIEW ON AMAZON | See Our Full Breakdown |
| Stainless Steel Air Operated Drum Transfer Pump, 95 cm, for Diesel, Engine Oil, and Hydraulic Oil |  | Best for Fast Air-Powered Transfers | Power source: Air operated | Material: Stainless steel | Flow rate: 50–80 L/min | VIEW ON AMAZON | See Our Full Breakdown |
| waste oil transfer pump for drum | Flow Rate |
|---|---|
| Manual 5-55 Gallon Oil Transfe | 0.25L (9oz) per stroke |
| Groz Heavy-Duty 115V Electric | Up to 8 GPM (30 LPM) |
| Groz Electric Oil Transfer Pum | 4 GPM (15 LPM) |
| BLACKHORSE-RACING Self-Priming | 20-60 L/min (5.25-15.75 GPM) |
| Zeeline ZED-S1 Lever Action Dr | — |
| OMT 55 Gallon Drum Pump | — |
| Pneumatic Oil Drum Pump with S | — |
| Lincoln 1335 Lever-Action Flui | — |
| OMT 55 Gallon Drum Pump | — |
| 110V 2480W Electric Liquid Tra | 80-100 liters per minute |
| Pneumatic Oil Transfer Pump | 6–10 L/min |
| LYCARESUN Adjustable Aluminum | — |
| 55 Gallon Manual Rotary Drum P | — |
| Brilluxa Rotary Oil Pump | Up to 29 L/min |
| Stainless Steel Air Operated D | 50–80 L/min |
More Details on Our Top Picks
Manual 5-55 Gallon Oil Transfer Pump – Heavy Duty Lever-Action Drum Pump with Telescopic Suction Tube
This lever-action pump stands out for shops that need occasional waste oil transfers without wiring or batteries. The telescopic suction tube adjusts from 18 to 35 inches, so the same unit works on everything from a 5-gallon pail to a full 55-gallon drum — a flexibility the fixed-tube Zeeline ZED-S1 can’t match across smaller containers. Chrome-plated steel tested past 10,000 cycles keeps it durable for the price.
The tradeoff is elbow grease: at 0.25L per stroke, draining a full drum takes real effort, and the hose is sold separately, unlike the Groz electric models that arrive complete. Compared with the Groz 45550, this pick makes the most sense for low-frequency use where a 115V outlet isn’t nearby.
Pros:- No electricity required, works in field and outdoor settings
- Telescopic tube fits everything from 5-gallon pails to 55-gallon drums
- Chrome-plated steel body tested for 10,000+ cycles
- Tool-free setup with dual-size inlet pipe
Cons:- Hose sold separately, adding hidden cost
- Manual operation is slow and tiring for large-volume transfers
Best for: Small farms and home shops that drain drums occasionally and have no power near the drum
Not ideal for: Busy repair shops moving multiple drums weekly — manual stroking becomes a chore fast
- Drum Compatibility:5-55 gallon (200L)
- Flow Rate:0.25L (9oz) per stroke
- Suction Tube:Adjustable 450-900mm (18-35 in)
- Connection Size:2″ NPT
- Material:Chrome-plated steel
- Weight:4.63 lbs
Our verdict“A sensible low-cost choice for infrequent, power-free drum transfers — skip it if you drain drums weekly.”
Groz Heavy-Duty 115V Electric Drum Pump, 8 GPM, 1/2 HP (Model 45555)
For most shops draining 55-gallon drums of waste or motor oil, this Groz hits the sweet spot between speed, completeness, and durability. At 8 GPM, it empties a drum roughly twice as fast as its sibling, the Groz 45550, and everything arrives in the box: suction tube, bung adaptor, 8-foot hose, and ball-valve nozzle. The self-priming gear design means no priming rituals before each use, and the internal bypass valve protects the system against closed-discharge mistakes.
Its limits are real: the 30-minute-on / 30-minute-off duty cycle rules out continuous industrial workflows, and it caps out at SAE 90 viscosity, so gear-lube shops should verify their fluids first. But for a repair bay or farm shop that empties a drum and walks away, this model makes the most sense in the lineup.
Pros:- Fast 8 GPM flow empties drums quickly
- Complete kit includes hose, nozzle, suction tube, and bung adaptor
- Self-priming with thermal protection and internal bypass valve
- Air-cooled 1/2 HP motor built for daily shop use
Cons:- Requires a 115V outlet, limiting outdoor portability
- 30-minute-on / 30-minute-off duty cycle restricts continuous use
Best for: Auto repair shops and farms that regularly drain 55-gallon drums of motor or hydraulic oil
Not ideal for: Operations needing continuous all-day pumping or thicker fluids beyond SAE 90
- Voltage:115V AC, 60 Hz
- Motor:1/2 HP, 3400 RPM, 9A
- Flow Rate:Up to 8 GPM (30 LPM)
- Max Viscosity:SAE 90
- Suction Tube:34-inch, two-piece threaded
- Hose:3/4-inch x 8-foot rubber
- Pump Body:Aluminum die-cast with sintered metal gears
Our verdict“The best all-around powered drum pump for shops that want speed and a complete kit out of the box.”
Groz Electric Oil Transfer Pump, 115V AC 1/2 HP Gear Pump, 4 GPM (Model 45550)
This 4 GPM Groz occupies a smarter position than many buyers realize: it shares the same 1/2 HP motor, thermal protection, and full accessory kit as the 8 GPM Model 45555, just running at 1600 RPM instead of 3400. That slower speed means gentler operation and typically less wear on gears, at the cost of roughly double the drain time per drum. For a shop emptying one waste-oil drum every week or two, the difference is minutes — not a reason to pay more.
Like its faster sibling, it’s capped at SAE 90 viscosity and the same 30/30 duty cycle. Compared with the BLACKHORSE-RACING pump, it moves less volume but handles a broader range of oil viscosities rather than thin fuels only. This pick suits buyers who want electric convenience without paying for maximum throughput.
Pros:- Ready to use out of the box with hose, nozzle, tube, and bung adapter
- Self-priming positive-displacement gear pump with thermal protection
- Handles motor, hydraulic, cutting, and used oil up to SAE 90
- Lower 1600 RPM speed is easier on components
Cons:- Half the flow rate of the Groz 45555 for similar money in some listings
- Not suitable for flammable fluids
- 30-minute-on / 30-minute-off duty cycle
Best for: Small workshops with modest weekly oil volumes that want electric convenience at lower cost
Not ideal for: High-throughput operations — 4 GPM and the 30/30 duty cycle will feel slow
- Voltage:115V AC, 60 Hz
- Motor:1/2 HP, 1600 RPM, 9A
- Flow Rate:4 GPM (15 LPM)
- Max Viscosity:SAE 90
- Bypass Pressure:65 PSI (4.5 bar)
- Hose:3/4 in x 8 ft rubber
- Drum Size:55-gallon (205 L)
Our verdict“A well-equipped mid-tier electric pump for shops that value completeness and longevity over raw speed.”
BLACKHORSE-RACING Self-Priming 110V AC Oil Transfer Pump – 16 GPM
When speed is the priority, this 550W pump is the sprinter of the group — up to 60 L/min (nearly 16 GPM), double the throughput of the Groz 45555. That makes it a strong fit for fueling equipment fleets, construction sites, and farm tanks where you’re moving diesel or biodiesel in volume and every minute counts.
The catch is fluid range: it’s built for thin fuels only, whereas the Groz gear pumps handle oil up to SAE 90. For waste motor oil draining, this is the wrong tool. It’s also explicitly not rated for gasoline or alcohol-based fuels, and it arrives as a bare pump — expect to source your own hose and fittings, unlike the complete Groz kits. Buyers should weigh whether raw flow rate matters more than viscosity range and included accessories.
Pros:- Highest flow rate in this batch at up to 60 L/min
- Self-priming design starts quickly without priming fuss
- Simple operation and easy maintenance
- Versatile across vehicles, farms, and job sites
Cons:- Not suitable for gasoline, LPG, alcohol, or low-flammability fuels
- Requires a 110V AC power source, limiting remote portability
- Light-oil focus excludes thicker waste oils
Best for: Farmers and construction crews transferring large volumes of diesel, kerosene, or biodiesel quickly
Not ideal for: Waste motor oil or thick lubricant draining — it’s designed for light fuels only
- Voltage:110V AC, 60 Hz
- Power:550W
- Flow Rate:20-60 L/min (5.25-15.75 GPM)
- Speed:2800 RPM
- Pump Type:Self-priming
- Compatible Fluids:Diesel, kerosene, biodiesel, light oils
Our verdict“Choose this only if you’re moving thin fuels fast — thick waste oil belongs with the Groz gear pumps instead.”
Zeeline ZED-S1 Lever Action Drum Pump, Heavy-Duty Steel Oil Transfer Pump
The ZED-S1 is the manual pump for buyers who plan to hand-pump for years. Compared with the budget lever-action pump from BoundlessUniverse, the Zeeline delivers roughly 1 gallon per 9 strokes — noticeably faster per stroke — and adds shop-friendly details like a rotating non-drip spout and an ergonomic handle with three locking positions that reduce spill risk and hand fatigue. The powder-coated steel body shrugs off the knocks of daily shop life.
Tradeoffs remain inherent to manual operation: extended draining is still physical work, and it tops out at 40 wt viscosity, below the SAE 90 ceiling of the Groz electric models. It also fits standard 2-inch bungs on 15- to 55-gallon drums but can’t shrink down to pails the way the telescoping BoundlessUniverse tube does. This model is better suited to professional shops wanting a dependable backup or primary low-volume pump.
Pros:- Fast manual delivery at about 1 gallon per 9 strokes
- All-steel construction with corrosion-resistant powder coating
- Rotating non-drip spout and ergonomic 3-position locking handle
- Telescoping tube fits 15- to 55-gallon drums
Cons:- Manual lever operation fatiguing during extended use
- Limited to fluids up to 40 wt viscosity
Best for: Professional shops wanting a durable, spill-controlled manual pump as a primary or backup unit
Not ideal for: Buyers moving high volumes or fluids heavier than 40 wt — an electric model serves better
- Pump Type:Lever action drum pump
- Delivery Rate:~1 gallon per 9 strokes
- Drum Sizes:15 to 55 gallons
- Bung Compatibility:Standard 2-inch openings
- Max Viscosity:Up to 40 wt oil
- Construction:Steel head, powder-coated steel body
Our verdict“The manual pump to buy if hand-pumping is your long-term plan — fast per stroke and built to last.”
OMT 55 Gallon Drum Pump – Manual Hand Crank Fuel Transfer Pump for 15-55 Gallon Drums
Among the manual options in this lineup, this OMT hand crank model stands out for its telescoping three-section suction tube that collapses from 35.4 inches down to 11.8, so it moves between a 15-gallon drum and a full 55-gallon barrel without swapping parts. Compared with the Lincoln 1335, OMT trades a slightly smaller 0.9-inch spout for a far lighter package at 1.7 kg and a custom-molded carrying case — a real advantage if the pump travels between job sites. The zinc-plated aluminum alloy construction holds up against corrosion from diesel and heavy oil, though the fluid list stops short of gasoline and water. The tradeoff is pace: cranking a 55-gallon drum empty takes patience, and buyers who drain drums weekly will likely want the pneumatic drum pump instead.
Pros:- Telescoping tube covers 15 to 55 gallon drums with one pump
- Lightweight at 1.7 kg with a molded carrying case for transport
- Corrosion-resistant zinc-plated aluminum alloy build
- 39.4-inch discharge hose reaches most receiving containers
Cons:- Not compatible with gasoline, water, or corrosive fluids
- Manual operation is slow compared with powered alternatives
Best for: Mobile mechanics and small shops that drain oil from mixed drum sizes and need a pump that packs up and travels
Not ideal for: High-volume shops draining multiple 55-gallon drums a week — manual cranking becomes a chore fast
- Material:Aluminum alloy with zinc plating
- Operation:Manual hand crank
- Drum Compatibility:15 to 55 gallon drums
- Suction Tube:11.8″ to 35.4″ telescoping, 3-section
- Discharge Hose:39.4 inches
- Spout Size:0.9 inches
- Weight:1.7 kg
- Compatible Fluids:Diesel, kerosene, heavy oil, transmission fluid
Our verdict“A well-built, travel-friendly hand crank pump for buyers who move between drum sizes and don’t mind working for the flow.”
Pneumatic Oil Drum Pump with Steel Suction Tube and Air Regulator
This air-operated reciprocating pump is the right choice when a shop already has compressed air plumbed to the bench — it turns drum drainage into a hands-free task that neither the OMT hand crank nor the Lincoln 1335 can match for throughput. What separates it from cheaper pneumatic units is the included air-treatment assembly with pressure regulation and oil-water separation, which protects the pump from wet, dirty shop air and extends its service life. The steel suction tube gives a rigid, sag-free fluid path into the drum, and the inlet strainer keeps larger debris out of the works. The limitations are real, though: it needs a compressor capable of steady supply, it handles only medium-to-low-viscosity lubricants, and dispensing hoses may need to be sourced separately.
Pros:- Air-treatment assembly with regulator and oil-water separator protects the pump
- Rigid steel suction tube for a stable fluid path
- Inlet strainer blocks larger contaminants
- Handles motor, gear, and hydraulic oil for shop maintenance
Cons:- Requires a compressed-air supply to operate
- Limited to compatible medium-to-low-viscosity lubricants
- Hoses and dispensing equipment may need to be purchased separately
Best for: Automotive and equipment workshops with existing compressed-air infrastructure that drain oil drums regularly
Not ideal for: Home users or remote sites without a compressor — the air requirement makes it a paperweight
- Operation:Pneumatic, air-operated reciprocating pump
- Intended Fluids:Motor oil, gear oil, hydraulic oil
- Suction Tube:Steel
- Inlet Protection:Strainer
- Air Treatment:Pressure regulator and oil-water separator
- Mounting:Compatible oil drums
Our verdict“The natural upgrade for compressed-air shops that have outgrown hand-cranking oil out of drums.”
Lincoln 1335 Lever-Action Fluid Transfer Pump
The Lincoln 1335 earns its place on fluid compatibility breadth alone — very few manual pumps in this roundup handle motor oil, transmission fluid, gear oil, fuel oils, coolant, diesel, kerosene, and hydraulic oil from one unit. Where the OMT hand crank stops at non-corrosive oils and fuels, the Lincoln keeps working across basically the whole non-gasoline fluid shelf. Its 8.5 fl. oz. per stroke output moves meaningfully more fluid per lever pull than rotary cranks typically manage, and the removable 6-foot hose with steel nozzle beats the fixed 39-inch hoses on the OMT pumps for reaching distant containers. The brass rings and check valve help it hold prime between strokes. The cost is the classic lever-action rhythm — repeated strokes for large transfers — and it demands the exact fluid list be respected.
Pros:- Broadest fluid compatibility among the manual picks, including coolant
- 8.5 fl. oz. per stroke delivers efficient manual flow
- Removable 6-foot hose with steel nozzle for long reach
- Check valve maintains prime between strokes
Cons:- Repeated lever strokes required for large-volume transfers
- Compatibility strictly limited to the listed fluids
Best for: General maintenance shops and farms that dispense many different fluids from drums and want one pump for all of them
Not ideal for: Buyers moving large volumes regularly — lever stroking is slower and more tiring than powered options
- Drum Capacity:16 to 55 gallons
- Flow per Stroke:8.5 fl. oz.
- Bung Size:2 inches
- Hose Length:6 feet, removable
- Outlet Nozzle:Steel
- Pump Rings:Brass
- Key Features:Telescoping tube, check valve, multi-position handle, bung tool
- Compatible Fluids:Motor oil, ATF, gear oil, fuel oils, coolant, diesel, kerosene, hydraulic oil
Our verdict“The most versatile manual drum pump here — pick it when one pump needs to handle every fluid in the shop.”
OMT 55 Gallon Drum Pump – Rotary Hand Crank Barrel Pump for 5 to 55 Gallon Drums
This OMT rotary pump is the budget-friendly sibling of the OMT hand crank model above — same zinc-plated aluminum alloy build, same 11.8″–35.4″ telescoping tube, same molded carrying case, but a wider 5 to 55 gallon drum range that adds small buckets and barrels the other OMT can’t reach. The compromise is the smaller 0.65-inch spout and barb fittings, which flow a bit less freely than the 0.9-inch outlet on its pricier sibling. Compared with the Lincoln 1335, it gives up fluid breadth (no coolant) and hose length but wins on price and portability at the same 1.7 kg. ISO and SAE spec compliance is a nice reassurance at this price point. Like every crank pump here, gasoline, water, and corrosive fluids are off the menu, and big transfers take time.
Pros:- Widest drum range in the manual class at 5 to 55 gallons
- Same durable zinc-plated alloy build as the pricier OMT model
- Carrying case and discharge hose included
- Meets ISO and SAE specifications
Cons:- Smaller 0.65-inch spout flows slower than larger-outlet pumps
- Not suitable for gasoline, water, or corrosive fluids
Best for: Budget-conscious buyers and hobbyists who want one affordable pump that fits everything from 5-gallon pails to full barrels
Not ideal for: Shops needing fast throughput or coolant compatibility — the smaller spout and fluid list hold it back
- Fits Drum Size:5 to 55 gallons
- Material:Aluminum alloy with zinc plating
- Operation:Manual rotary hand crank
- Suction Tube:11.8″ to 35.4″ telescoping, 3-section
- Discharge Hose:39.4 inches
- Spout / Inlet Size:0.65 inches, barb outlet / bung inlet
- Weight:1.7 kg
- Compatible Fluids:Diesel, heavy oil, motor oil, transmission fluid
Our verdict“The smart value play for occasional users who want OMT build quality across every drum size they own.”
110V 2480W Electric Liquid Transfer Pump with 91cm Stainless Steel Tube and 2m Hose
When speed is the priority, this 2480W electric pump sits in a different league from every manual option here — its 80–100 liters per minute flow rate empties a drum in a fraction of the time the OMT rotary or Lincoln lever pump requires. The 6-position speed dial is the standout feature versus fixed-speed electrics like the Groz 8 GPM model, letting the operator throttle back for smaller containers or delicate dispensing. The 91cm stainless tube and 2m reinforced hose with quick-connect fittings cover most drum-to-tank setups. But the safety line is hard: it is not explosion-proof and cannot handle flammable or high-viscosity liquids, which rules out gasoline and thick waste grease — and careless installation can leak. It’s a fast workhorse within its lane, not an all-fluids solution.
Pros:- Very high flow rate of 80-100 L/min from a 2480W motor
- 6-position adjustable speed control for varied tasks
- 91cm stainless steel tube and 2m reinforced hose included
- Quick-connect fittings speed up setup and teardown
Cons:- Not explosion-proof; flammable, explosive, and high-viscosity liquids are off-limits
- Improper installation can cause leakage
- Requires a 110V outlet, limiting remote use
Best for: Commercial and industrial users moving large volumes of water, diesel, motor oil, kerosene, or antifreeze quickly
Not ideal for: Anyone handling flammable liquids or needing explosion-proof gear — and cordless/remote sites without 110V power
- Power:2480W, 110V
- Motor Speed:13,000 RPM
- Flow Rate:80-100 liters per minute
- Suction Tube:91 cm stainless steel
- Hose Length:2 m reinforced with quick-connect fittings
- Speed Control:6-position adjustable dial
- Mounting:Bung mount
- Weight:5.5 pounds
Our verdict“The fastest way to drain drums of low-viscosity fluids — provided your fluids and worksite meet its safety limits.”
Pneumatic Oil Transfer Pump, Heavy-Duty Waste Oil Drum Pump with Pressure Gauge, 200L, Single Pump
The pressure gauge and low-pulsation operation make this a fit for workshops that want a steady feed from a standard 200 L drum. Its 5:1 pressure ratio and 6–10 L/min flow suit medium- to low-viscosity oils, while the inlet strainer helps limit debris reaching the pump. Compared with the Stainless Steel Air Operated Drum Transfer Pump, this model has a much lower stated flow rate, which can be easier to manage when dispensing lubricants rather than moving liquid quickly. The aluminum body, seamless steel tube, and exhaust muffler support regular shop use. The tradeoff is setup: this is a pump-only configuration, so a hose and metering gun may be needed, and it requires compressed air. I would skip it for thick waste oil or locations without an air supply.
Pros:- Pressure gauge helps monitor operating pressure during transfer.
- Low-pulsation 6–10 L/min flow suits controlled oil dispensing.
- Inlet strainer and leak-proof connectors support cleaner, tidier operation.
- Aluminum alloy body and seamless steel tube are suited to workshop use.
Cons:- Compressed air at 0.5–0.8 MPa is required.
- Single-pump configuration may need a hose and metering gun purchased separately.
- Not intended for high-viscosity fluids.
Best for: Automotive and maintenance workshops with compressed air that transfer medium- or low-viscosity oil from 200 L drums and value controlled flow.
Not ideal for: Home garages without a compressor, or shops moving thick, high-viscosity waste oil that needs a pump designed for heavier fluids.
- Operation:Pneumatic
- Pressure ratio:5:1
- Air pressure:0.5–0.8 MPa
- Flow rate:6–10 L/min
- Delivery head:150 m / 492 ft
- Tube length:950 mm / 37.4 in
- Drum compatibility:200 L industrial oil drums
- Body material:Aluminum alloy
Our verdict“Choose this pump for measured transfers of thinner oils from 200 L drums when your workshop already has compressed air.”
LYCARESUN Adjustable Aluminum Drum Pump for Oil and Diesel
Three adjustable aluminum tubes give this hand pump a useful advantage when the same operator handles drums of different sizes. It is listed for 15- to 55-gallon drums and works with engine, hydraulic, and gear oils as well as diesel and kerosene. The locking outlet pipe can help keep discharge aimed where it is needed. Compared with the 55 Gallon Manual Rotary Drum Pump, the LYCARESUN emphasizes adjustable tube length and broad drum capacity, while the rotary option is specified for a 2-inch NPT bung on steel drums. The LYCARESUN does not list a flow rate or a rotary mechanism, so I would not choose it for frequent, high-volume transfers. Its fluid restrictions also matter: no gasoline, water, corrosives, or chemical solutions, and edible oil use is not food grade.
Pros:- Three adjustable aluminum tubes accommodate different drum depths.
- Listed compatibility spans 15- to 55-gallon drums.
- Locking outlet pipe helps maintain discharge direction.
- Threaded suction pipe and rubber ring are designed to reduce leaks.
Cons:- Cannot be used with gasoline, water, corrosives, or chemical solutions.
- Not food grade for edible oil.
- No flow rate is provided, making transfer speed difficult to compare.
Best for: Small workshops or farm users who hand-transfer several compatible oils or diesel from drums in the 15- to 55-gallon range.
Not ideal for: Buyers transferring gasoline, water, corrosive liquids, chemical solutions, or food products, and anyone needing a specified high-volume flow rate.
- Compatible drum capacity:15–55 gallons
- Pump height:51 inches
- Tube configuration:Three adjustable tubes
- Tube material:Aluminum
- Pump core material:Composite resin
- Suitable liquids:Engine oil, hydraulic oil, gear oil, diesel, and kerosene
- Operation:Hand operated
Our verdict“Pick the LYCARESUN if adjustable reach across several drum sizes matters more than a specified transfer rate.”
55 Gallon Manual Rotary Drum Pump for Diesel, Oil, and Kerosene
For buyers focused on transferring waste oil from a metal drum, this rotary hand-crank pump is one of the few options here that explicitly lists waste oil among its compatible fluids. Its all-aluminum construction and threaded connections with rubber seals are aimed at repeated use, while rotary operation offers a steadier manual routine than a lever pump such as the Lincoln 1335 Lever-Action Fluid Transfer Pump. The fit is specific: the listing calls for standard steel drums with a 2-inch NPT bung. That makes it less adaptable than the LYCARESUN Adjustable Aluminum Drum Pump, which is listed for a wider range of drum capacities. There is no flow-rate figure, so buyers cannot estimate transfer time from the supplied data. It also rules out plastic drums, IBC totes, gasoline, and water.
Pros:- Waste oil is explicitly listed as a compatible fluid.
- All-aluminum body is suited to regular farm or shop handling.
- Rotary hand crank provides a steady manual pumping method.
- Threaded connections, metal lock nut, and rubber seals support a leak-conscious setup.
Cons:- Requires a compatible steel drum with a 2-inch NPT bung.
- Not compatible with plastic drums or IBC totes.
- No flow rate is specified for estimating transfer time.
Best for: Farm, garage, and service-shop operators who manually transfer waste oil or other listed fluids from compatible steel drums with a 2-inch NPT bung.
Not ideal for: Users with plastic drums, IBC totes, gasoline or water to transfer, or buyers who need a stated flow rate.
- Operation mode:Manual hand crank, rotary
- Drum compatibility:Steel drums, 5–55 gallons
- Bung size:2-inch NPT
- Body material:Aluminum
- Compatible fluids:Diesel, motor oil, waste oil, kerosene, and hydraulic fluid
- Connection type:Threaded inlet and outlet
- Not compatible with:Gasoline, water, plastic drums, or IBC totes
Our verdict“Choose this rotary pump for manual waste-oil transfer when your drum is steel and has the required 2-inch NPT bung.”
Brilluxa Rotary Oil Pump, Hand Crank Drum Transfer Pump, Aluminum Alloy, for 55 Gallon Fuel and Lubricant Transfer
The included pipes, straws, filter, and connector make the Brilluxa a more complete manual setup than the pump-only pneumatic options in this roundup. It is rated for up to 29 L/min at 70 RPM, though actual output will depend on the operator and liquid. That stated rate is higher than the 6–10 L/min listed for the 200 L Pneumatic Oil Transfer Pump, but the Brilluxa needs hand cranking and has a maximum lifting head of 5 m. Its aluminum alloy body keeps the pump relatively light, while the included components give buyers more flexibility across 55-gallon drums, barrels, and small tanks. The tradeoff for waste-oil buyers is that the listing does not specifically name waste oil among its applications. It also needs oil priming before use, and the 9.8 ft suction lift limits placement.
Pros:- Includes a hand crank, pipes, three straws, filter, and connector.
- Manual operation needs no electrical power.
- Stated flow rate is up to 29 L/min at 70 RPM.
- Compatible with 55-gallon drums, barrels, and small tanks.
Cons:- Must be primed with oil before use.
- Manual cranking can become tiring during repeated transfers.
- Waste oil is not specifically listed as a compatible fluid.
Best for: Garage and farm users who want a manual pump kit with included transfer parts for occasional fuel or compatible lubricant moves.
Not ideal for: Buyers who need explicit waste-oil compatibility, frequent high-volume operation without manual effort, or suction lift beyond 9.8 ft.
- Power source:Manual hand crank
- Material:Aluminum alloy and bamboo
- Flow rate:Up to 29 L/min
- Operating speed:70 RPM
- Vertical suction lift:9.8 ft
- Maximum lifting head:5 m / 16.4 ft
- Compatible containers:55-gallon drums, barrels, and small tanks
- Included components:Hand crank, U-shaped pipe, discharge pipe, three straws, filter, and plastic connector
Our verdict“Choose the Brilluxa for occasional manual transfers where an included accessory kit matters and the fluid is explicitly compatible.”
Stainless Steel Air Operated Drum Transfer Pump, 95 cm, for Diesel, Engine Oil, and Hydraulic Oil
A stated 50–80 L/min flow rate sets this air-operated pump apart for buyers who prioritize moving compatible liquid quickly. Its stainless steel construction is listed for diesel, engine oil, hydraulic oil, water, and compatible chemicals, with a 95 cm inlet pipe for drums or pails. Against the 200 L Pneumatic Oil Transfer Pump, the advertised flow is substantially higher, but that other model provides a pressure gauge and a lower 6–10 L/min range that may suit more controlled dispensing. The Brilluxa hand-crank pump avoids an air supply, while this model trades that independence for speed. Its 3–6 m lift and low-viscosity focus narrow the fit, and the flow can vary with liquid viscosity. Waste oil is not named specifically, so I would confirm compatibility before relying on it for that use.
Pros:- Advertised 50–80 L/min flow supports rapid transfers of compatible liquids.
- Stainless steel construction offers corrosion resistance.
- Listed for drums and pails.
- Plug-and-play construction is described as simple to install and maintain.
Cons:- Requires an air supply.
- Best suited to low-viscosity liquids, not thick fluids.
- Waste oil is not specifically listed, and flow varies with viscosity.
Best for: Industrial or automotive sites with compressed air that need rapid transfer of compatible, low-viscosity liquids from drums or pails.
Not ideal for: Buyers without an air supply, those moving thick waste oil, or anyone who needs explicit confirmation that this pump handles waste oil.
- Power source:Air operated
- Material:Stainless steel
- Flow rate:50–80 L/min
- Inlet tube length:95 cm
- Lift:3–6 m
- Discharge diameter:2.5 / 3.2 cm
- Compatible containers:Drums and pails
- Item weight:6.61 lb
Our verdict“Choose this air-operated pump for fast movement of confirmed compatible, low-viscosity liquids when compressed air is available.”
How We Picked
My ranking logic starts with viscosity handling, because waste oil is thicker and more contaminated than fresh fuel. Pumps with positive-displacement gear mechanisms or proven lever-action designs scored higher than generic centrifugal pumps that struggle with cold, sludgy oil. From there I weighed flow rate against power requirements — a 16 GPM pump is pointless in a shop without a suitable outlet, and a hand pump is exhausting if you drain drums weekly.
Next came build quality and chemical compatibility: steel and aluminum suction tubes, sealed bushings, and included accessories like hoses, nozzles, and air regulators all factored into value. I also considered drum fit, since several cheap options only work properly on standard 2-inch bung openings, and long-term serviceability — manual lever pumps with replaceable wear parts outlast disposable electric units. The final order balances upfront cost against what each pump actually delivers for a waste-oil-specific workload, not just clean-fluid transfer.
Factors to Consider When Choosing Waste Oil Transfer Pump For Drums
Before settling on a pump, it helps to understand the broader landscape of drum transfer equipment — including the mistakes that cost buyers money and the situations where spending more genuinely pays off.
Match the Pump Mechanism to Waste Oil’s Viscosity
The single most common mistake in this category is buying a pump designed for thin fluids and expecting it to move waste oil. Waste engine oil can be several times thicker than diesel, especially in an unheated garage during winter, and centrifugal or impeller-style pumps lose flow dramatically as viscosity rises. Positive-displacement designs — gear pumps on the electric side, lever-action pumps on the manual side — maintain output regardless of thickness. If your waste oil sits outdoors or gets cold, this distinction matters more than any flow-rate figure on the box. A pump rated at 16 GPM on water might deliver a fraction of that on cold 15W-40. Always check whether the manufacturer specifies performance on oil, not just water or diesel.
Power Source: Electric, Pneumatic, or Manual
Each power option carries hidden costs beyond the sticker price. Electric pumps need a grounded 110V/115V outlet near the drum and should never run dry, which is the number-one killer of budget electric units. Pneumatic pumps require an air compressor with adequate CFM — if you don’t already own one, that’s a major added investment — but they’re intrinsically safer around flammable vapors and tolerate stalling without damage. Manual pumps cost nothing to operate and never fail electronically, but a full 55-gallon drum takes hundreds of lever strokes or crank rotations. Match the power source to your shop’s existing infrastructure rather than buying the cheapest option and retrofitting your workspace around it.
Drum Compatibility and Suction Tube Length
Not every pump fits every drum, and this trips up first-time buyers constantly. Standard 55-gallon steel drums use a 2-inch NPT bung opening, and most pumps here are threaded for it — but smaller 15- and 30-gallon drums sometimes have different openings. Suction tube length is the other variable: a tube that’s too short leaves several gallons of oil stranded at the drum bottom, while a telescopic tube adjusts to shallow containers. Check whether the pump includes the suction tube, discharge hose, and nozzle, or whether those are separate purchases. Bundled kits often look pricier but cost less once you price a compatible hose separately.
Build Material and Chemical Resistance
Waste oil is contaminated with fuel, coolant, soot, and sometimes solvents, and it attacks cheap materials over time. Steel and aluminum tubes hold up well; plastic housings and low-grade seals degrade, crack, or swell after months of exposure. Stainless steel components, like those on the air-operated 95 cm model in this lineup, add cost but justify it if you also transfer corrosive fluids or store the pump in humid conditions. Seals and O-rings deserve special attention — they’re the first failure point on inexpensive pumps, and replacement parts for off-brand units are often unobtainable. Established brands like Groz, Zeeline, and Lincoln score well here precisely because spares exist.
Realistic Flow Rate Expectations
Flow ratings on listing pages are usually measured with water under ideal conditions, so treat them as ceilings rather than guarantees. For waste oil, expect roughly 50-70% of the advertised GPM from electric pumps and even less from hand cranks. Think honestly about your volume: draining a drum once a month makes a 4 GPM pump perfectly adequate, while a busy lube shop moving multiple drums weekly wants 8+ GPM or pneumatic power. Overspending on flow you’ll never use is just as wasteful as underspending and spending twenty minutes per transfer. Time-per-drum is the number that actually matters, not the spec sheet figure.
Safety and Contamination Handling
Waste oil transfer carries risks that clean-fuel transfer doesn’t. Used oil often contains water and sludge that settles at the drum bottom, so the last few gallons are the nastiest — pumps with strainers or debris-tolerant designs handle this better. Around flammable vapors, pneumatic pumps eliminate electrical ignition sources, which is why they dominate professional shops. Grounding and bonding matter if you’re pumping anything with fuel contamination. And never repurpose a waste oil pump for drinking water or food fluids afterward; cross-contamination is permanent. Plan for spill containment under the drum too, since disconnecting a wet suction tube always drips.
Frequently Asked Questions
Can I use a regular fuel transfer pump for waste oil instead of a dedicated waste oil pump?
You can, but only if the pump is a positive-displacement design rated for viscous fluids. Pumps built specifically for diesel and kerosene are often centrifugal or impeller types, and those lose most of their flow when presented with used engine oil that’s full of soot and sludge. The contaminated nature of waste oil also accelerates wear on seals and cheap plastics, so a budget fuel pump may survive a season before leaking. Look for gear-type electric pumps or lever-action manuals — the Groz models and Zeeline ZED-S1 in this lineup handle both clean fuel and waste oil. If you already own a fuel pump, check its viscosity rating before running waste oil through it, and expect to clean the strainer frequently.
Is a manual or electric drum pump better for occasional home shop use?
For occasional use — say, draining a drum a few times per year — a manual lever-action pump is almost always the smarter buy. It has no motor to seize, no seals to burn out from running dry, and nothing to corrode while sitting unused between transfers. The tradeoff is effort: a full 55-gallon drum takes substantial physical work, especially with cold, thick oil. If your transfers are more frequent or your oil supply is thick year-round, a modest electric pump like the 4 GPM Groz saves real labor for a moderate price premium. The mistake to avoid is buying a big 16 GPM electric unit for occasional use — the motor sits idle, seals dry out, and you’ve paid for capacity you never touch.
What CFM air supply does a pneumatic drum pump need, and is it worth it without a compressor?
Most pneumatic drum pumps in this class need roughly 4-8 CFM at 90 PSI to run effectively, which means a mid-size workshop compressor — small pancake compressors built for nail guns usually can’t keep up. If you don’t already own a suitable compressor, buying one just for oil transfer makes the pneumatic route far more expensive than a good electric pump, and I’d steer you elsewhere. But if compressed air is already plumbed to your workbench, pneumatic pumps are arguably the best choice: they can’t burn out from stalling, they’re safe around flammable vapors, and flow is adjustable via the air regulator. That regulator also gives you gentle control when topping off containers, something fixed-speed electric pumps can’t match.
How do I get the last few gallons out of a drum when the pump stops reaching?
This happens with every fixed-length suction tube: the last one to two gallons sit below the intake, often mixed with water and sludge that settled out. Tilting the drum onto blocks or a drum cradle is the simplest fix, letting the remaining oil pool near the suction tube opening. Some pumps offer telescopic tubes that can be shortened for partial drums or shallow containers, which helps with small-volume transfers. If you’re draining toward a waste-oil heater, note that the bottom sludge layer is often water-contaminated and burns poorly regardless — many operators deliberately leave it. A cheap hand syphon or drill pump finishes the remainder if you need the drum truly empty for cleaning or return.
Are the aluminum-bodied rotary hand pumps durable enough for waste oil?
Aluminum rotary pumps like the Brilluxa and the 55 Gallon Manual Rotary model hold up reasonably well to waste oil itself — the alloy resists the fluid fine — but their weak points are the rotor vanes and shaft seals, which wear faster on thick, gritty fluid than on clean diesel. They’re genuinely fine for thinner fluids and light waste-oil duty, and their low weight makes them easy to move between drums. Where they fall short is sustained heavy use: expect noticeably more effort per crank and eventual seal weeping compared with a steel lever-action pump like the Lincoln 1335. My rule of thumb: rotary aluminum for occasional or multi-fluid use, steel lever-action or electric if waste oil is the primary job week in and week out.
Conclusion
After comparing all 15 options, the right pick depends almost entirely on your transfer frequency and power infrastructure. For the best overall choice, the Groz Heavy-Duty 115V Electric Drum Pump (45555) delivers the best mix of flow, durability, and convenience for shops draining drums regularly. The best value goes to the Manual 5-55 Gallon Lever-Action Pump — no power needed, nothing to fail, and genuinely capable on thick waste oil. Buyers wanting premium performance should look at the pneumatic models, particularly the air-regulated drum pump, which pairs high throughput with spark-free operation for professional shops. For beginners or occasional users, the OMT hand crank pumps offer a forgiving, low-cost entry point that works right out of the box. And for specific needs: the Groz 4 GPM self-priming model suits modest electric budgets, the stainless steel air-operated pump handles corrosive and multi-fluid duty, and the telescopic-tube manual pump is the pick if you work with mixed drum sizes. Whatever you choose, buy for the oil you actually transfer — not the flow rate on the box — and the pump will outlast the drum.
